Product Features:
Maximum resolution up to 8 million pixels, with options for 2 million or 4 million pixels.
Starlight ultra-low illumination performance.
Supports 52x optical zoom and 16x digital zoom.
Supports basic detection functions such as motion detection.
ICR infrared filter automatic switching, achieving true day and night monitoring.
Supports ONVIF and GB/T28181 protocols for access.
Supports remote upgrading via the web interface.
Optical axis consistency is maintained at ≤10 pixels throughout.
Supports heat wave elimination and electronic image stabilization.
Optional Network/CVBS/LVDS/SDI/HDMI/USB outputs.
Product Parameters：
Parameters | |

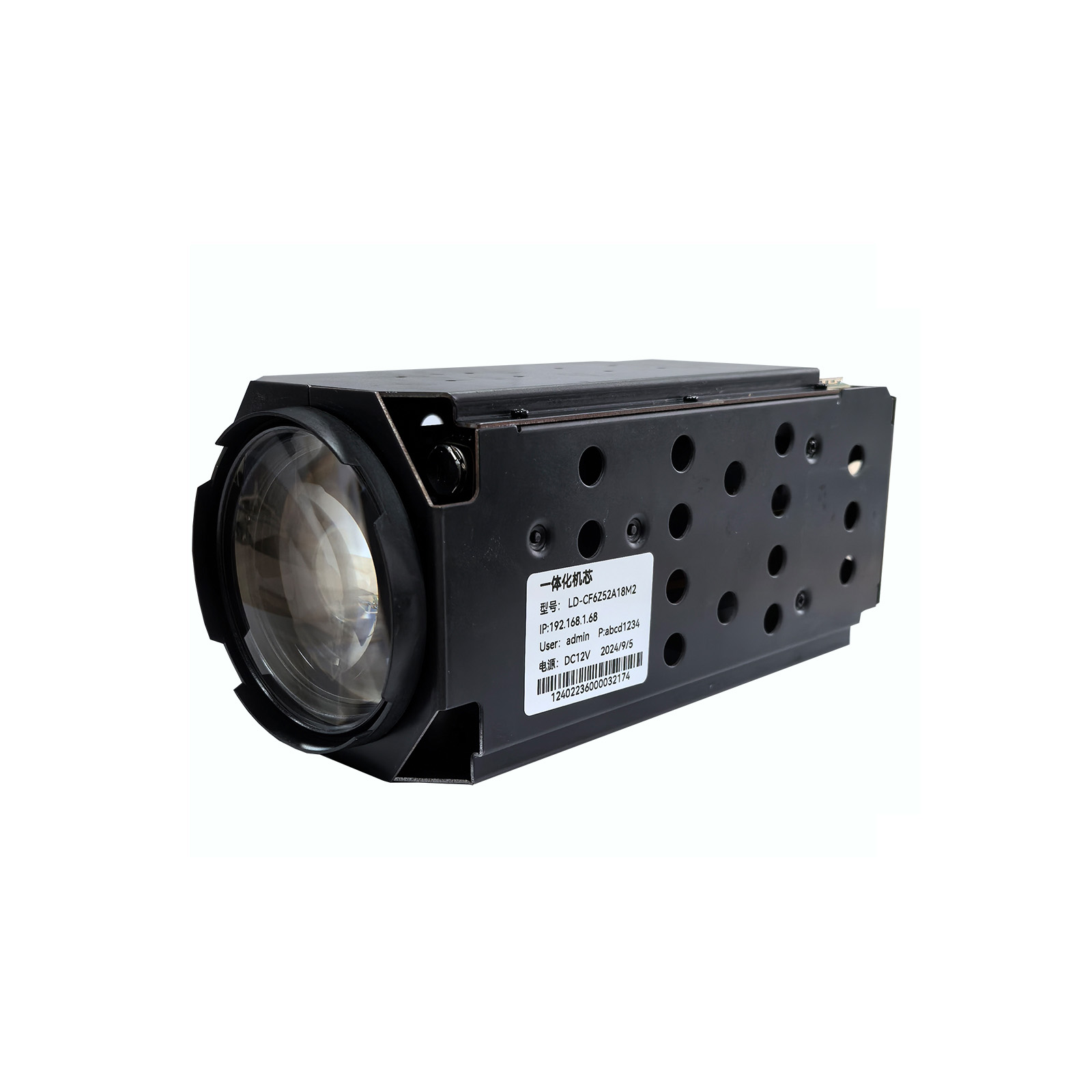

Model | LD-CF6Z52A18M2/LD-CF6Z52A18M4/LD-CF6Z52A18M8 |
Image Sensor | 1/1.8” Progressive Scan CMOS |
Minimum Illumination | Color:0.0005 Lux @(F1.4,AGC ON);B/W:0.0001Lux @(F1.4,AGC ON) |
Pixels | 200MP/400MP/800MP |
Shutter | 1/25S至 1/100,000S |
PIRIS | Auto |
Day/Night Switch | ICR cut filter |
Digital zoom | 16 |
Focal Length | 6-316mm，52X |
Aperture Range | F1.4-F4.7 |
Horizontal Field of View | 62°-1.5 ° |
Minimum Working Distance | 100mm-2000mm |
Zoom Speed | 6S |
Video Compression | H.265 / H.264 / MJPEG |
H.265 Type | Main Profile |
H.264 Type | BaseLine Profile / Main Profile / High Profile |
Video Bitrate | 32 Kbps~16Mbps |
Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080,1280 × 960, 1280 × 720)50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 60fps (1920 × 1080, |
Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser |
Area Exposure | Support |
Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
Defog | Support |
Image Stabilization | Support |
Day/Night Switch | Automatic, manual, timing, alarm trigger |
3D Noise Reduction | Support |
Picture Overlay Switch | Support BMP 24-bit image overlay, customized area |
Storage Function | Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support) |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SN MP,IPv6 |
Interface Protocol | ONVIF(PROFILE S,PROFILE G) ,GB28181-2016 |
Smart Detection | Cross-border detection, area intrusion detection, entering /leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection, virtual focus detection, face detection |
External Interface | 36pin FFC (RJ45、RS485、RS232、CVBS、SDHC、Alarm In/Out、Line In/Out、power) |
Video Out | Network/CVBS/lvds/sdi/hdmi/usb |
Temperature | -30℃~60℃ |
Power | DC12V±25% |
Power consumption | 2.5W MAX( ICR ,4.5W MAX) |
Dimensions | 175.5x75x78mm |
Weight | 945g |
