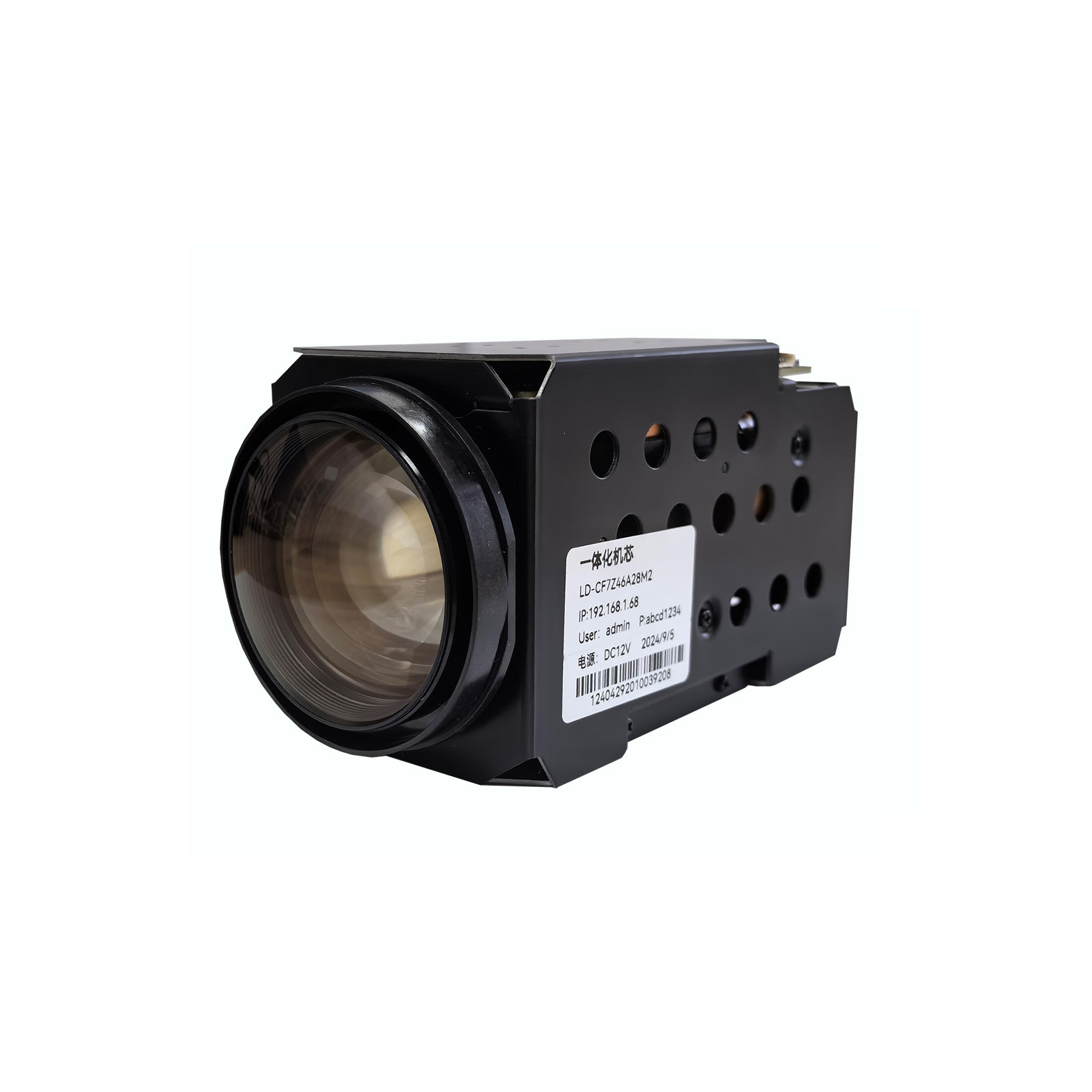

n CCTV long range IP zoom camera module
n 2 million pixels.
n Night vision with full color, excellent night vision image effect
n Supports 36x optical zoom .
n Supports basic detection functions such as motion detection.
n ICR infrared filter automatic switching, achieving true
day and night monitoring.
n Supports ONVIF protocols for access.
n Support PTZ，485&232
n Supports remote upgrading via the web interface.
n Optical axis consistency is maintained at ≤10 pixels throughout.
n Supports heat wave elimination and electronic image stabilization.
n Optional Network/CVBS/LVDS/SDI/HDMI outputs.
Parameters | |
Model | LD-CF6.7Z36A18M2 |
Image Sensor | 1/2.8” Progressive Scan CMOS |
Minimum Illumination | Color:0.0005 Lux @(F1.4,AGC ON);B/W:0.0001Lux @(F1.4,AGC ON) |
Pixels | 2MP |
Shutter | 1/25S to 1/100,000S |
PIRIS | Auto |
Day/Night Switch | ICR cut filter |
Digital zoom | 16 |
Focal Length | 6.7-241mm，36X |
Aperture Range | F1.5-F3.4 |
Horizontal Field of View | 59.8-1.9° |
Minimum Working Distance | 100mm-2000mm |
Video Compression | H.265 / H.264 / MJPEG |
H.265 Type | Main Profile |
H.264 Type | BaseLine Profile / Main Profile / High Profile |
Video Bitrate | 32 Kbps~16Mbps |
Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080,1280 × 960, 1280 × 720)50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 60fps (1920 × 1080, |
Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser |
Area Exposure | Support |
Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
Defog | Support |
Image Stabilization | Support |
Day/Night Switch | Automatic, manual, timing, alarm trigger |
3D Noise Reduction | Support |
Picture Overlay Switch | Support BMP 24-bit image overlay, customized area |
Storage Function | Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support) |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SN MP,IPv6 |
Interface Protocol | ONVIF(PROFILE S,PROFILE G) ,GB28181-2016 |
Smart Detection | Cross-border detection, area intrusion detection, entering /leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection, virtual focus detection, face detection |
External Interface | 36pin FFC (RJ45、RS485、RS232、CVBS、SDHC、Alarm In/Out、Line In/Out、power) |
Video Out | Network/CVBS/lvds/sdi/hdmi/usb |
Temperature | -30℃~65℃ |
Power | DC12V±10% |
Power consumption | 2.5W MAX( ICR ,4.5W MAX) |
Dimensions | 117.3*57*69mm |
Weight | 450g |
